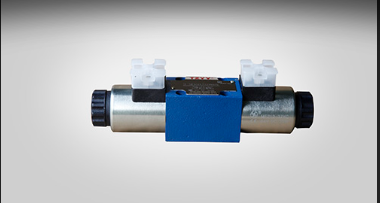

The direction control valve is mainly used to control the oil circuit in the hydraulic system or change the flow direction of the oil, so as to control the start or stop of the hydraulic actuator, change the direction of the actuator, and meet the requirements of different working conditions.

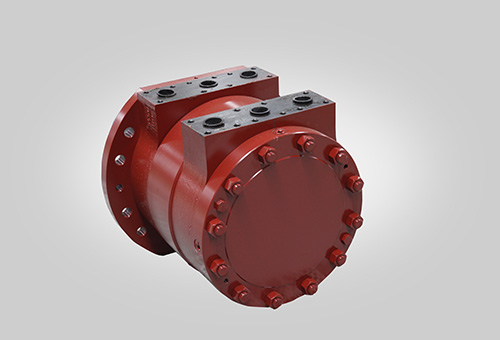

IHI-WM series hydraulic motor has high pressure, low speed and high torque, with stage variable, composed of motor body and controller. The motor with various control functions. The motor body is mainly composed of front and rear shell components, valve core components, etc. The controller is a cartridge integrated system composed of safety valve and buffer valve. It has compact structure, small fluid motion damping, convenient maintenance, high integration and convenient modification design.

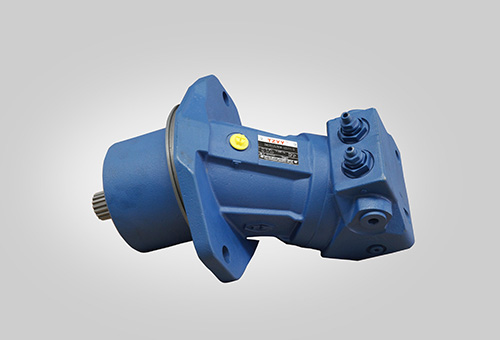

ZM02FM series quantitative motor can integrate flush valve and oil valve, relief valve, brake valve BVD. The flush refill valve is used to remove the heat from the hydraulic oil circuit and to ensure the lowest refill pressure level in the closed circuit. MHDB relief valve to prevent hydraulic motor overload; The brake valve prevents the risk of motor overspeed (i.e., loss of control) and cavitation caused by insufficient fuel supply in the open circuit.

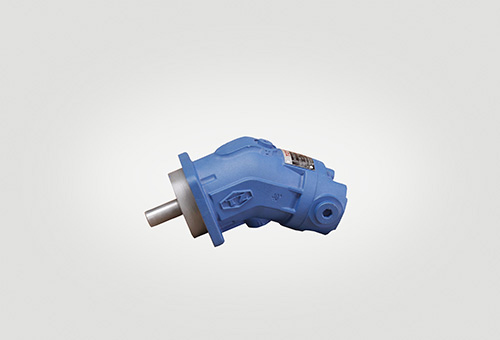

The ZM02FE series of quantitative plug-in motors are easy to install in mechanical reducers and can be integrated with flush and refill valves, relief valves, balance valves BVD and BVE. The flush refill valve is used to remove the heat from the hydraulic oil circuit and to ensure the lowest refill pressure level in the closed circuit. MHDB relief valve to prevent hydraulic motor overload; The balance valve is designed to reduce the risk of overspeed and cavitation in the axial piston motor in the open circuit.

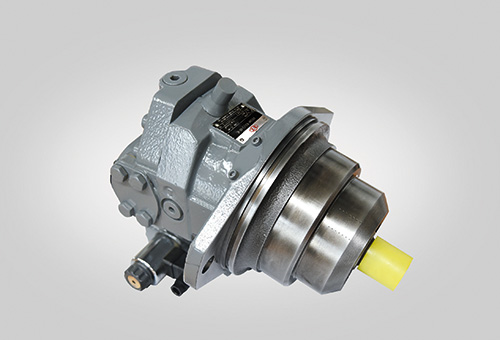

ZM-80EZ4 variable incline piston plug-in motor. The displacement can be stepless adjusted within the given range of Vgmin and Vgmax, with high use pressure, large power density, and good low-speed characteristics and starting characteristics. Comprehensive control mode to meet various application requirements. The brake release valve, flush valve and oil refill valve can be configured. The flush refill valve is used to prevent closed circuit overheating and ensure the minimum oil refill pressure in the system.

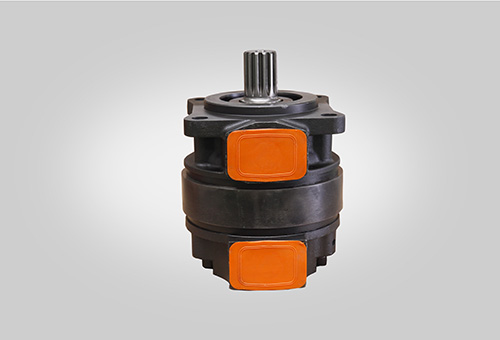

YM037 is a vane motor whose unique blade and stator structure design achieves high speed and high torque, ensuring high volumetric efficiency and mechanical efficiency. At present, our company has successfully produced a motor with a displacement of 330mL/r.
